Leica Lino L2-1 Cross-Line Laser Level

Leica Lino L2-1 Cross-Line Laser Level

$407.00
  IN STOCK
  IN STOCK
  IN STOCK
PRODUCT ENQUIRY
Exact and quick projection of horizontal and vertical lines
Brand: Leica Geosystems    Code: LG864413
APN: 7640110697528    Supplier Code: 864413

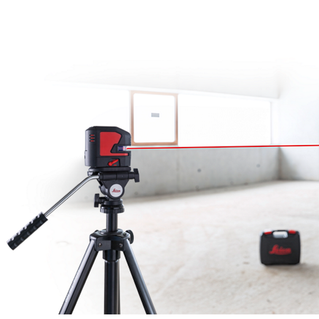

OUTSTANDING LASER VISIBILITY

The high-precision optics of the Leica Lino L2 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.

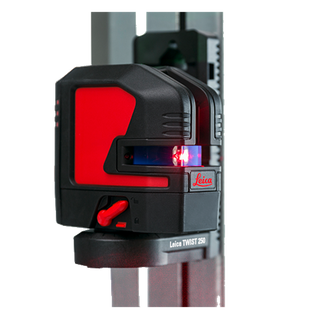

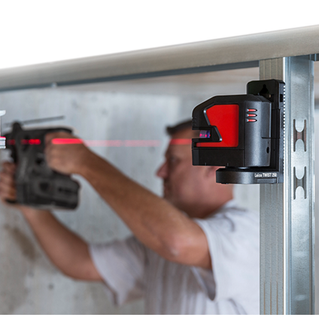

SMART ADAPTERS

Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.

SELF-LEVELLING

The Leica Lino L2 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.

RUGGED DESIGN

The Leica Lino L2 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs.

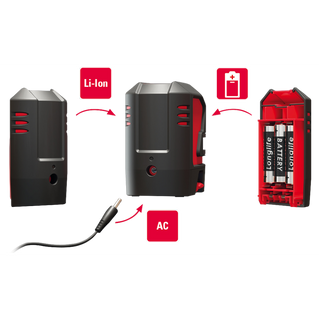

TRIPLE POWER CONCEPT

The Leica Lino L2’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 44 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.

Range

up to 25 m depending on lighting conditions

Range with laser receiver

up to 80 m depending on lighting conditions

Levelling accuracy

± 0.2 mm  m

Self-levelling range

± 4 °

Self-levelling time

< 3 s

Number of laser lines

2

Beam direction

vertical, horizontal

Laser line width at 5m

< 2 mm

Laser type

635 nm  class 2 (red)

Battery type

Li-Ion rechargeable (or AA 3 x 1.5 V)

Operating time

up to 44 h (Li-Ion) depending on laser mode

Temperature range storage

-25 to 70°C (-13 to 158°F)

Temperature range operation

-10 to 50°C (14 to 122°F)

Protection class

IP 54

Dimensions

110 x 60 x 100 mm

Weight with batteries

530 g

Tripod thread Lino

1/4"

Tripod thread adapter

1/4" + 5/8"

Art. No.

864413 (L2 starter kit 848435)

EAN / UPC

7640110697528 (L2 starter kit 7640110697511)

Range

up to 25 m depending on lighting conditions

Range with laser receiver

up to 80 m depending on lighting conditions

Levelling accuracy

± 0.2 mm  m

Self-levelling range

± 4 °

Self-levelling time

< 3 s

PRODUCT MANUALS
Leica Lino L2-1 Cross-Line Laser Level - Product Manual

OVERVIEW

OUTSTANDING LASER VISIBILITY

The high-precision optics of the Leica Lino L2 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.

SMART ADAPTERS

Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.

SELF-LEVELLING

The Leica Lino L2 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.

RUGGED DESIGN

The Leica Lino L2 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs.

TRIPLE POWER CONCEPT

The Leica Lino L2’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 44 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.

SPECIFICATIONS

Range

up to 25 m depending on lighting conditions

Range with laser receiver

up to 80 m depending on lighting conditions

Levelling accuracy

± 0.2 mm  m

Self-levelling range

± 4 °

Self-levelling time

< 3 s

Number of laser lines

2

Beam direction

vertical, horizontal

Laser line width at 5m

< 2 mm

Laser type

635 nm  class 2 (red)

Battery type

Li-Ion rechargeable (or AA 3 x 1.5 V)

Operating time

up to 44 h (Li-Ion) depending on laser mode

Temperature range storage

-25 to 70°C (-13 to 158°F)

Temperature range operation

-10 to 50°C (14 to 122°F)

Protection class

IP 54

Dimensions

110 x 60 x 100 mm

Weight with batteries

530 g

Tripod thread Lino

1/4"

Tripod thread adapter

1/4" + 5/8"

Art. No.

864413 (L2 starter kit 848435)

EAN / UPC

7640110697528 (L2 starter kit 7640110697511)

Range

up to 25 m depending on lighting conditions

Range with laser receiver

up to 80 m depending on lighting conditions

Levelling accuracy

± 0.2 mm  m

Self-levelling range

± 4 °

Self-levelling time

< 3 s

DOWNLOADS

PRODUCT MANUALS
Leica Lino L2-1 Cross-Line Laser Level - Product Manual
