Leica GRZ101 360° Mini Prism

Loading
  • Leica GRZ101 360° Mini Prism
  • Leica GRZ101 360° Mini Prism
  • Leica GRZ101 360° Mini Prism
$1,543.00 In Stock

  • Suitable for short range automatic target recognition (ATR) applications.
  • Provides the greatest pointing accuracy of 1.5mm.
  • Leica GLS115 pole sold separately.

Light-weight, passive reflectors for use with robotic Total Stations.

Suitable for short range automatic target recognition (ATR) applications. Due to its small size, the GRZ101 provides the greatest pointing accuracy of 1.5mm. With the GAD103 adapter (sold separately) this reflector can be mounted on all poles with stub fitting. ATR range of 350m.

For efficient operation without the need for directing the reflector toward the instrument, a 360° prism is required. This type of reflector consists of six corner-cube prisms joined together. The arrangement allows the measuring beam to reflect directly back to its source from any position on the prism set. The even distribution of the prisms provides similar offset and accuracy readings from any side.

Due to its small size, this low cost alternative provides the greatest pointing accuracy of 1.5mm. However, the GRZ101 has restricted functionality with the TPS Power Search, and a shorter ATR range than the standard size reflectors.

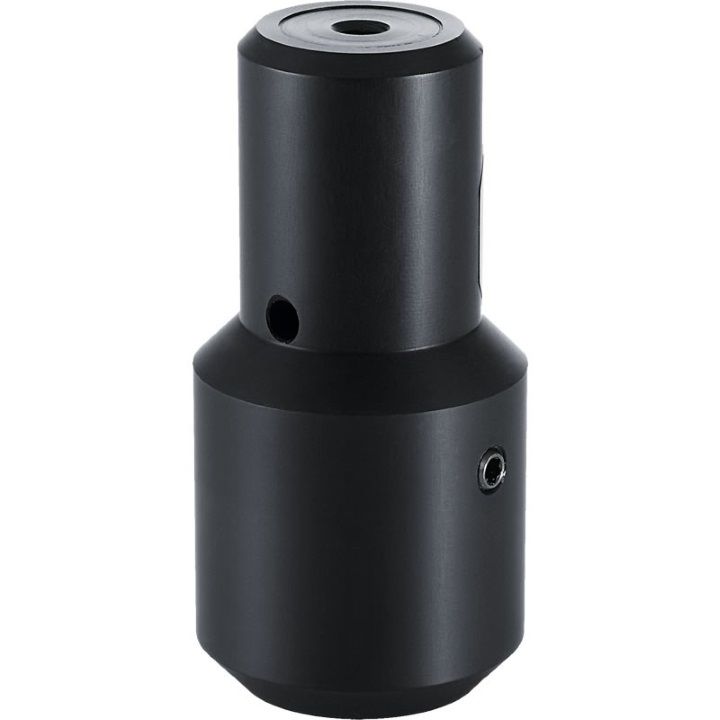

The GAD103 adapter (sold separately) allows the mini reflector to be mounted on all survey poles having a Wild pin stub. The adapter provides the correct offset in order for the prism height to be read directly off the pole scale.

  • Metal holder
  • 350m range (with automatic target recognition)
  • 1.5mm accuracy

Prism Constant 30.0mm
Centring Accuracy 1.5mm
Range 350m (ATR)

Comparison Charts
Leica Prism Dimensions - Comparison Chart
Brochures
LG644327 - Brochure
Datasheets
Leica GRZ101 360° Mini Prism - Datasheet

  • 1 x GRZ101 360° Mini Prism

Note: Leica GLS115 pole is not included.

Brand: Leica Geosystems | Code: LG644327
APN: 644327 | Supplier Code: 644327
Supplier Description: GRZ101 360 MINI PRISM

Brand: Leica Geosystems | Code: LG644327
APN: 644327 | Supplier Code: 644327
Supplier Description: GRZ101 360 MINI PRISM

At a glance

  • Suitable for short range automatic target recognition (ATR) applications.
  • Provides the greatest pointing accuracy of 1.5mm.
  • Leica GLS115 pole sold separately.
