ExynPak Lidar System Vehicle Mount/Handle Portable System
ExynPak Lidar System Vehicle Mount/Handle Portable System

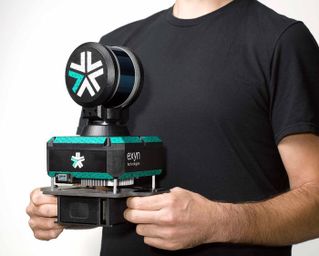

Meet ExynPak, the portable, real-time 3D mapping solution with survey-grade accuracy. Rugged enough to be mounted to a vehicle while portable enough to be carried by hand.
Supplier Code: EXYNPAK
The Benefits of 3D SLAM MappingPortable 3D SLAM mapping can capture high density scans of almost any environment without the need of GPS, LTE, or communications of any kind. Export these scans to a variety of modeling software for greater business intelligence and a more robust understanding of operations.
|
|
SYSTEM
|
Weight (incl. battery) |
3.5 kg |
|
Size (H x W x L) |
320 x 220 x 175 mm |
|
Operating Temperature |
-20° to 45° C |
CAPABILITIES
|
GPS Required |
No |
|
Low/No-Light Operation |
Yes |
GIMBALLED LIDAR
|
Laser Safety Class |
1 |
|
Field Of View |
360° horizontal |
|
Rotation Frequency |
20 Hz |
|
Gimbal Rotation |
~2Hz |
|
Max Range |
100 m @ 80% Surface Reflectance |
|
Points Per Second |
~600,000 |
|
Return Type |
Dual with Intensity |
|
Range Accuracy |
Up to ±3 cm |
OUTPUT
|
Real-Time Data Visualization |
Yes |
|
Data Collection Replay |
Yes |
|
Point Cloud |
XYZ, Intensity |
|
Point Cloud Formats |
LAS, PLY, XYZ |
|
Other Outputs |
Trajectory |
CONTROL UNIT
|
CPU |
Intel Core i7 |
|
RAM |
32GB DDR4 |
|
Storage |
512 GB internal SSD |
|
Interfaces |
USB 3.0, WiFi |
POWER
|
DC Input |
24V |
|
Power |
75W |
BATTERY
|
Batteries Included |
2 |
|
Nominal Voltage |
24V (6S) |
|
Battery Capacity (each) |
130Wh |
|
Battery Chemistry Type |
Li-Ion |
|
Typical Operating Time |
4 hours |
TABLET
|
Model |
14", IP-65 |
|
Interface |
Capacitive Touchscreen |
|
Operating System |
Ubuntu 16.04 |
|
Software Interface |
ExynView™, mission control & live data streams |
|
Communication |
2.4GHz & 5.8GHz WiFi WPA2 encryption |
|
Weight |
3.1 kg |
CASE
|
Internal Size (H x W x L) |
53.3 x 40.6 x 30.5 cm |
|
External Size (H x W x L) |
61 x 48.3 x 33 cm |
|
Shipping Weight |
19kg |
| SPECIFICATIONS | |
|---|---|
| ExynPak Lidar System Vehicle Mount/Handle Portable System - Specifications |
OVERVIEW
The Benefits of 3D SLAM Mapping
Portable 3D SLAM mapping can capture high density scans of almost any environment without the need of GPS, LTE, or communications of any kind. Export these scans to a variety of modeling software for greater business intelligence and a more robust understanding of operations.
SPECIFICATIONS
SYSTEM
|
Weight (incl. battery) |
3.5 kg |
|
Size (H x W x L) |
320 x 220 x 175 mm |
|
Operating Temperature |
-20° to 45° C |
CAPABILITIES
|
GPS Required |
No |
|
Low/No-Light Operation |
Yes |
GIMBALLED LIDAR
|
Laser Safety Class |
1 |
|
Field Of View |
360° horizontal |
|
Rotation Frequency |
20 Hz |
|
Gimbal Rotation |
~2Hz |
|
Max Range |
100 m @ 80% Surface Reflectance |
|
Points Per Second |
~600,000 |
|
Return Type |
Dual with Intensity |
|
Range Accuracy |
Up to ±3 cm |
OUTPUT
|
Real-Time Data Visualization |
Yes |
|
Data Collection Replay |
Yes |
|
Point Cloud |
XYZ, Intensity |
|
Point Cloud Formats |
LAS, PLY, XYZ |
|
Other Outputs |
Trajectory |
CONTROL UNIT
|
CPU |
Intel Core i7 |
|
RAM |
32GB DDR4 |
|
Storage |
512 GB internal SSD |
|
Interfaces |
USB 3.0, WiFi |
POWER
|
DC Input |
24V |
|
Power |
75W |
BATTERY
|
Batteries Included |
2 |
|
Nominal Voltage |
24V (6S) |
|
Battery Capacity (each) |
130Wh |
|
Battery Chemistry Type |
Li-Ion |
|
Typical Operating Time |
4 hours |
TABLET
|
Model |
14", IP-65 |
|
Interface |
Capacitive Touchscreen |
|
Operating System |
Ubuntu 16.04 |
|
Software Interface |
ExynView™, mission control & live data streams |
|
Communication |
2.4GHz & 5.8GHz WiFi WPA2 encryption |
|
Weight |
3.1 kg |
CASE
|
Internal Size (H x W x L) |
53.3 x 40.6 x 30.5 cm |
|
External Size (H x W x L) |
61 x 48.3 x 33 cm |
|
Shipping Weight |
19kg |
DOWNLOADS
| SPECIFICATIONS | |
|---|---|
| ExynPak Lidar System Vehicle Mount/Handle Portable System - Specifications |
