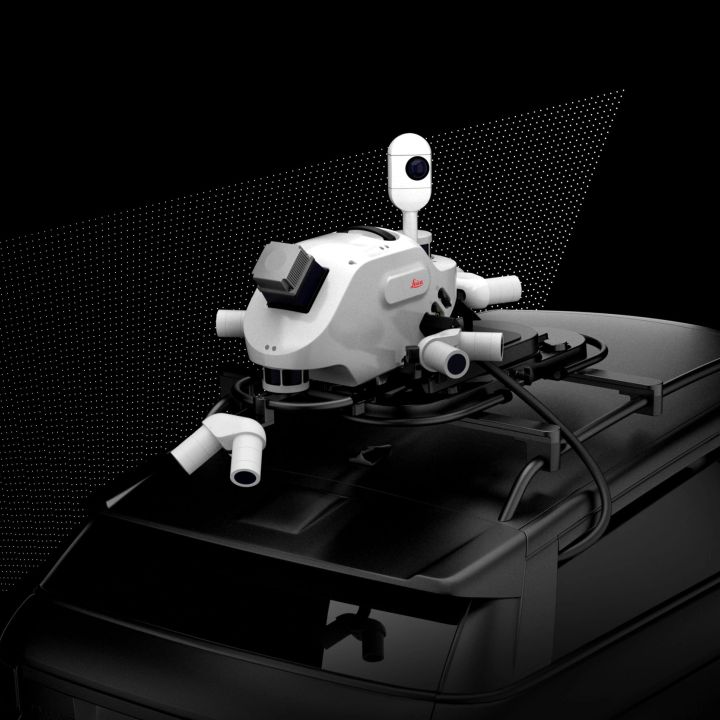

Leica Pegasus TRK500/700 Neo Mobile Mapping Package

Makes Life Easier. Everyday.

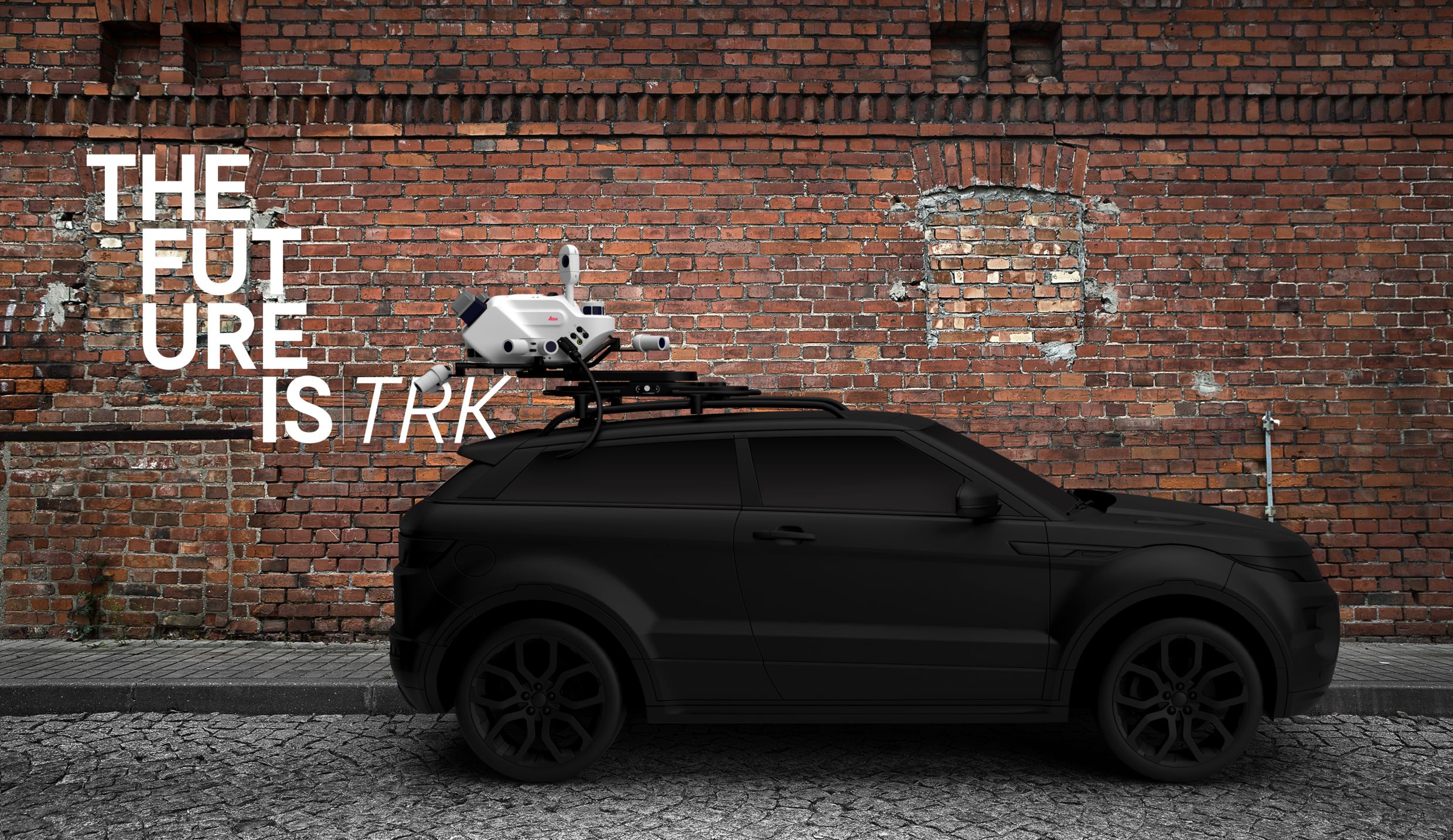

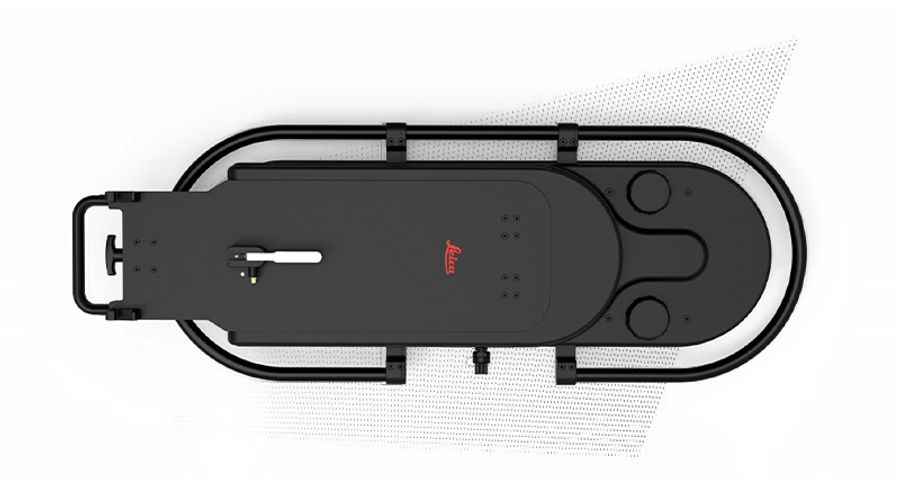

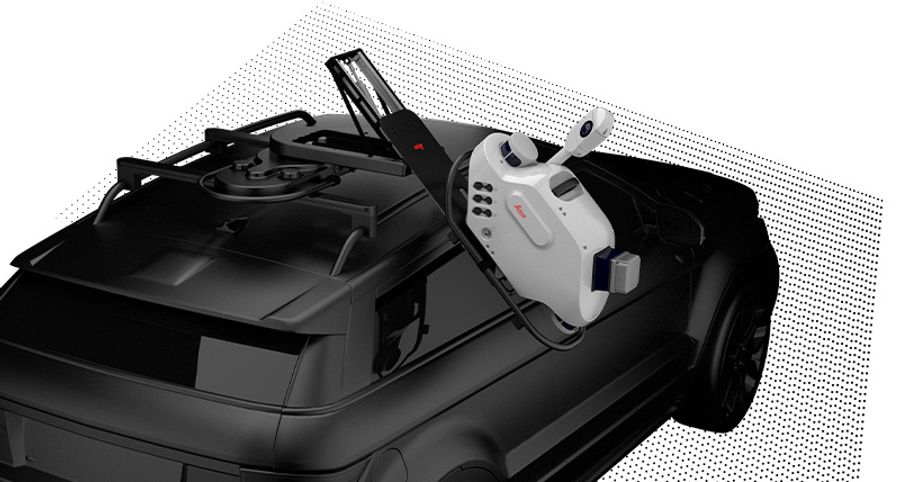

With a unique rotation-tilting mounting platform and ergonomic design, Pegasus TRK can be set up and operated by just one person. It reduces the system lifting height by 36cm avoiding risky lifting operations.

Lightweight. Heavily Designed.

The ingenious rotation-tilting movement keeps personnel and system safe during the mounting and dismounting operation. The Pegasus TRK handle and handlebar provides full control and comfortable ergonomics.

Three Positions, Two Steps, One Person.

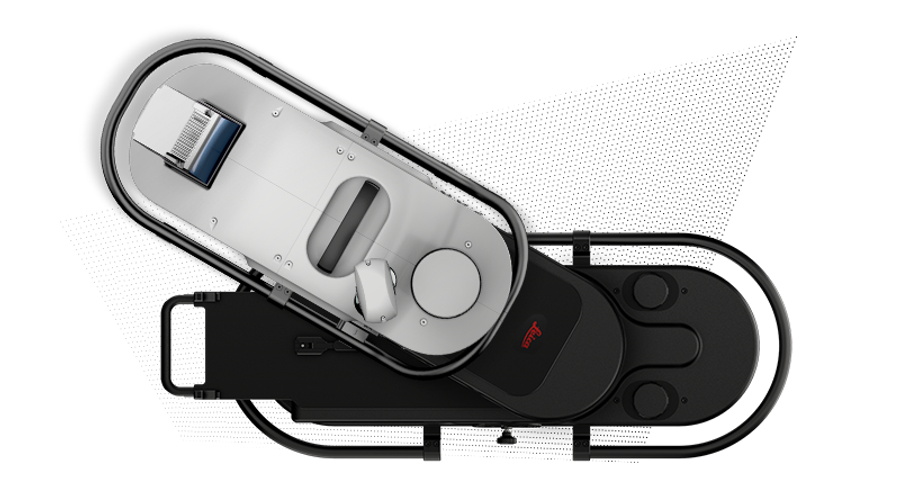

Three rotating positions (-30°/0°/+30°) allows TRK500 users to achieve a crossed point cloud pattern during multi pass acquisitions to reduce shadows in the acquired data - mimicking a dual scanner deliverable.

Additional Features

• Haptic Feedback - All mounting points have an embedded torque indicator, System locker is double secured
• Speed - Capable of supporting speeds up to 130km/h, Aerodynamic design minimises fuel consumption
• Safety - TÜV safety certification, Designed to withstand emergency brake and lane line changes (elk test)
• Compatibility - Natively compatible with several Thule® roof bar systems, Will fit on the large majority of vehicles

Power Is Nothing Without Control

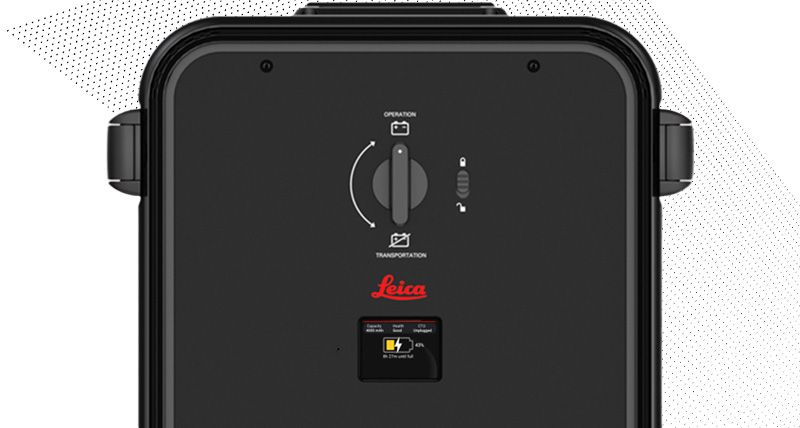

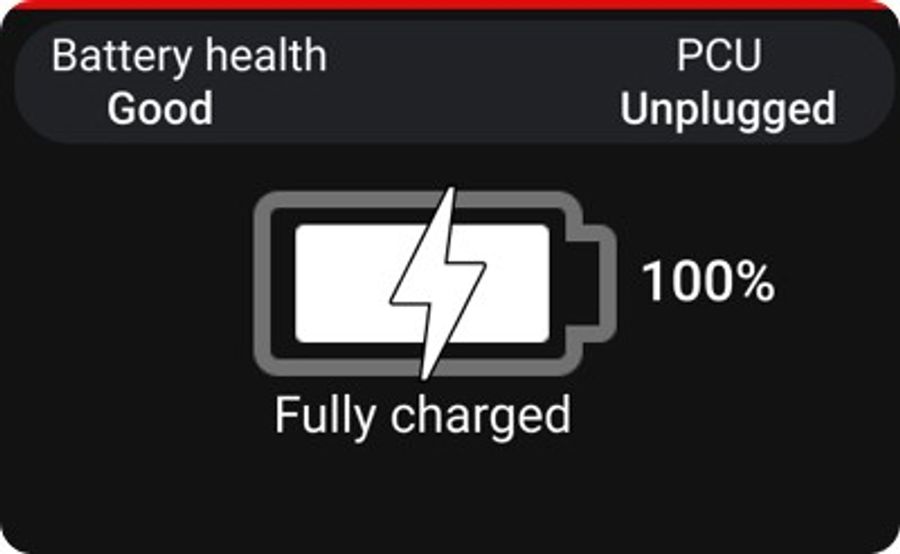

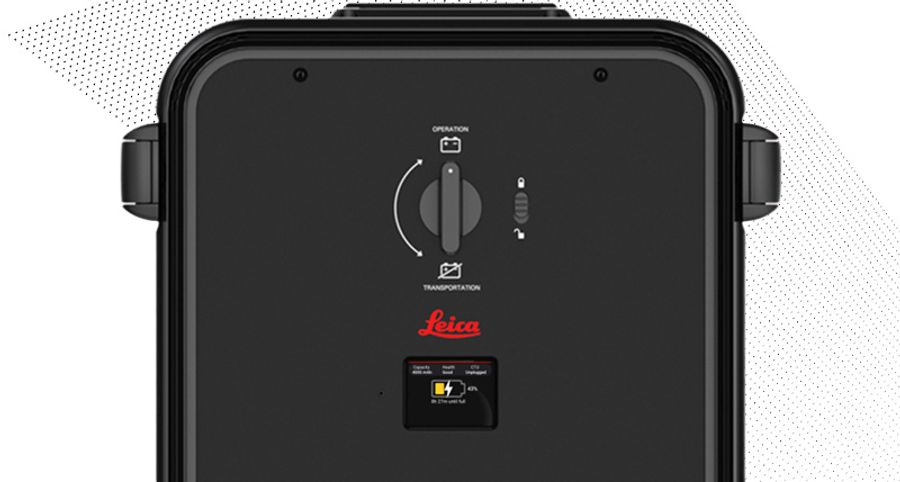

Get full status control with the 2.4 inch colour LCD displaying real-time battery health information. An intelligent monitoring processor checks constantly the Li-Ion cells providing the actual battery capacity and assuring longevity.

Makes Transportation Safe

The main switch activates transportation mode for ground and aircraft shipping - making the battery fully compliant to dangerous goods regulation UN 3480/3481.

Expand To Extend

Expand to up to three batteries for massive data capture. The hot-swap logic manages automatically the power source extending the Pegasus TRK operational time up to 21h.

Additional Features

• Hot-swap - Up to 3 hot-swap batteries with automatic switch to next battery power source, Fast charging management, fully charged in 5.5h
• Information - Battery health notfication and alerts over the colour LCD display and Pegasus FIELD
• Environment - IP54, limited protection against dust and ingress protected against splash water from any direction

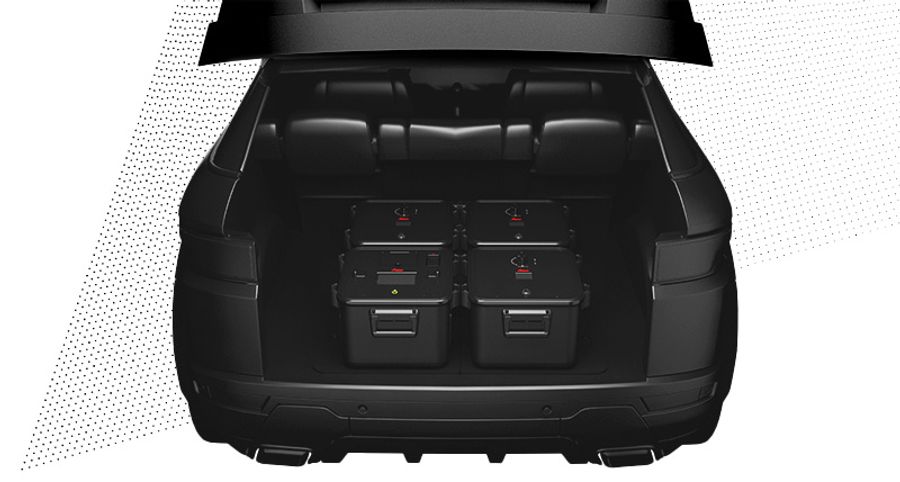

• Weight & Size - 13kg lightweight, Minimised size to fit in any vehicle, Dedicated car trunk fixation plate to position safely the batteries during the drive

As Simple As A Touch

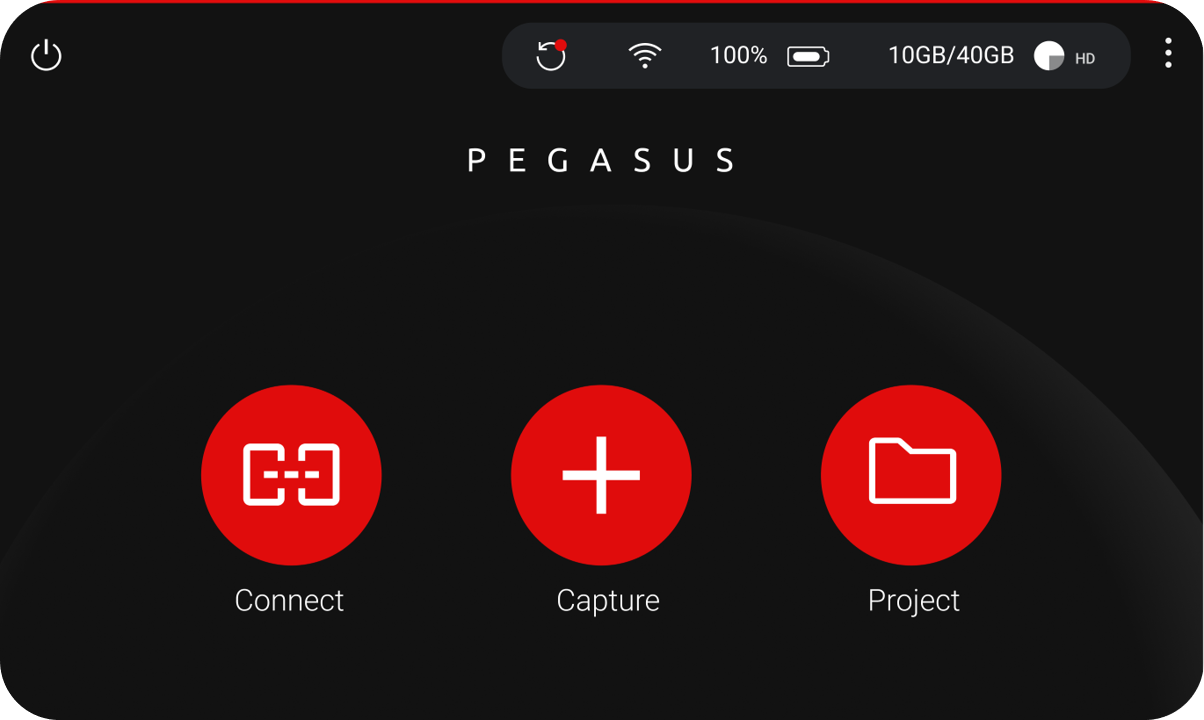

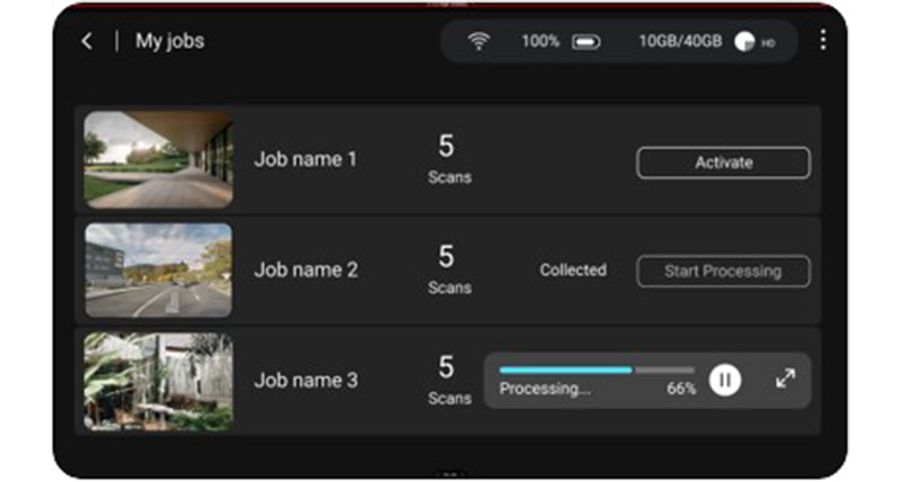

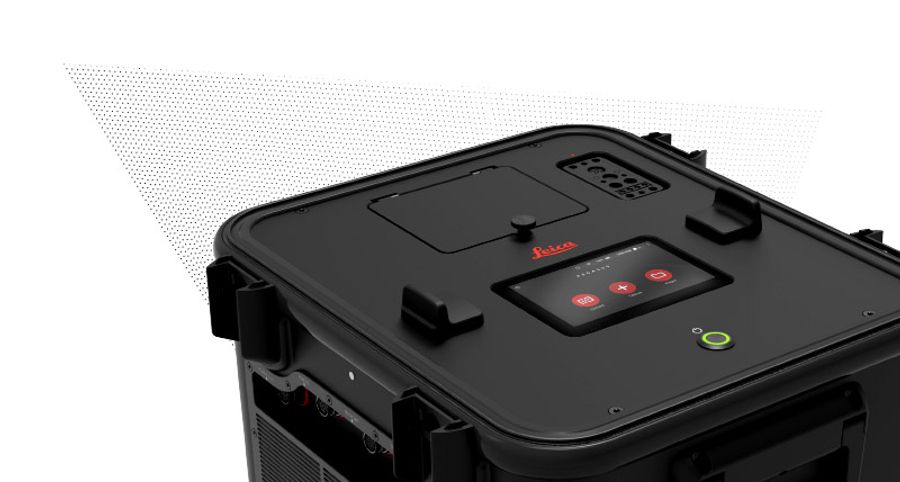

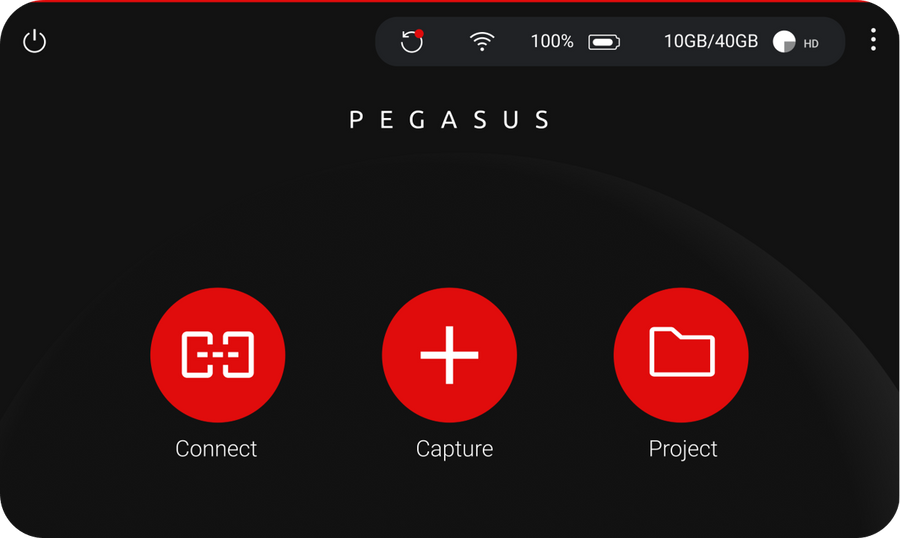

Created to transform the workflow for reality capture professionals, the control unit allows you to go straight from data capture to processing on-the-fly, right when you need it. No more time-consuming transcoding, storage overhead, or errors during data transfer.

Works While You Rest

Keep moving and deliver on time. Launch 3D data pre-processing with a single touch to ensure the system works as you travel back to the office.

All In Yours Hands

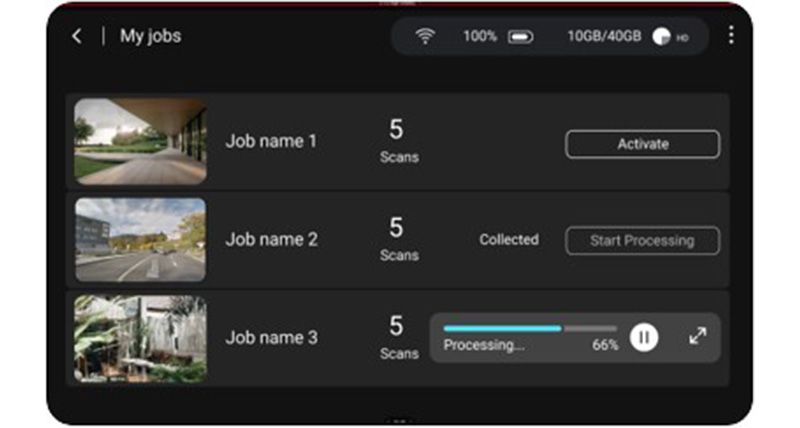

Data logistics are simplified. Add storage on-the-fly or share performed missions with colleagues, the data is safely stored in a ruggedised case.

Additional Features

• On-Devices AI - Built-in AI module, Real-time blurring recognition, Compliant with GDPR privacy regulations
• On-board Processing - Automatic one-click project pre-processing workflow, Direct data storage to removable SSD
• Storage - Supports 4TB and 7.6TB storage, High performance industrial grade SSD’s
• Connectivity - Integrated Wi-Fi and LAN access, Power management system, Hot-plug accessory hub

Leica Pegasus TRK - Imaging Solution

Expand And Go. More Details. More Possibilities.

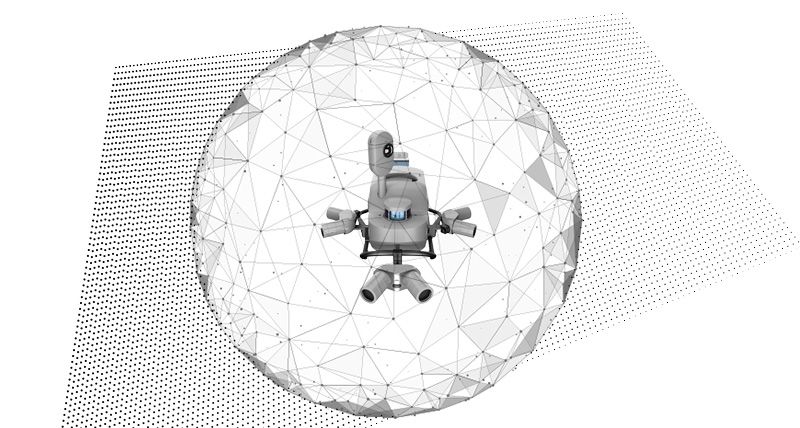

Fully integrated modular imaging system allows you to add more cameras, for more angles, more detail and more possibilities. Automatic camera calibration simplifies and streamlines system set up so you can expand and go. Collecting at up to 8 frames per second, no detail is missed.

Bring Images And Data To Life

SmartFusion camera system with up to 120MP integral view. Boosted with add-on front, side and rear pavement cameras, the Pegasus TRK is expandable with a click. The additional cameras multiply the resolution, creating the same level of detail as a 156MP spherical camera.

See High Or See Wide

The butterfly side cameras have a dual position, vertical and horizontal, enabling to capture vertical arches in high resolution for texturing and damage analysis or horizontal features like traffic signs or civic numbers.

Built-in Privacy

Pegasus TRK is designed to preserve the privacy. Collected faces and car plates are blurred in real time, protecting citizens privacy and complying with the GDPR legislation. All the acquired data is encrypted assuring your data doesn’t leave your Pegasus.

Additional features

• Colours
  • Calibrated colours according to CIEDE2000
  • Flat Field Correction for homogeneous image brightness
• Auto-brightness

  • Camera brightness calculated in real-time over the histogram
  • Improves dark and bright environment capture
• Environment
  • Anti-fog lenses, enables to capture in fast changing environmental conditions
  • IP67, fully dust tight and withstands temporary immersion under water
• Front & Rear Cameras
  • The front camera captures traffic signs at high resolution
  • The rear camera focus on road surface for a detailed pavement analysis

Leica Pegasus TRK - Location Positioning

SLAM All The Time

A sophisticated integration of IMU and SLAM (Simultaneous Localization and Mapping) technology enables georeferencing in GNSS denied areas such as tunnels or dense urban environments.

Real Time Kinematic

Precision RTK positioning gives you location accuracy down to the centimetre in real-time. HxGN SmartNet has a wide choice of flexible solutions. With precision comes opportunity. The opportunity to unlock new and smarter ways of working.

Solid Tracking Skills

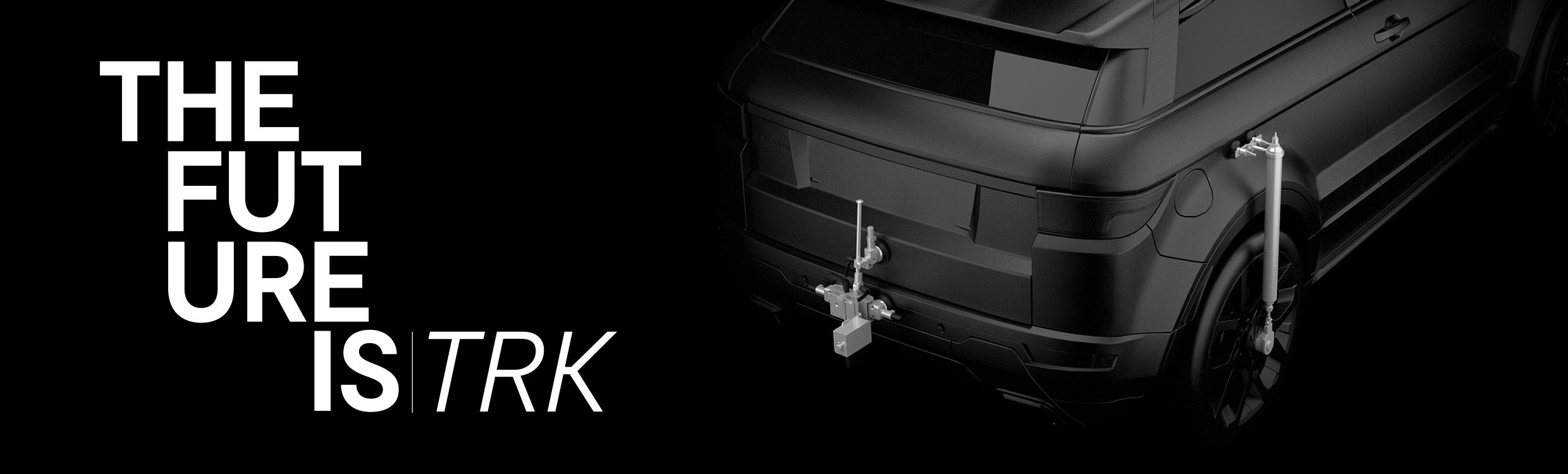

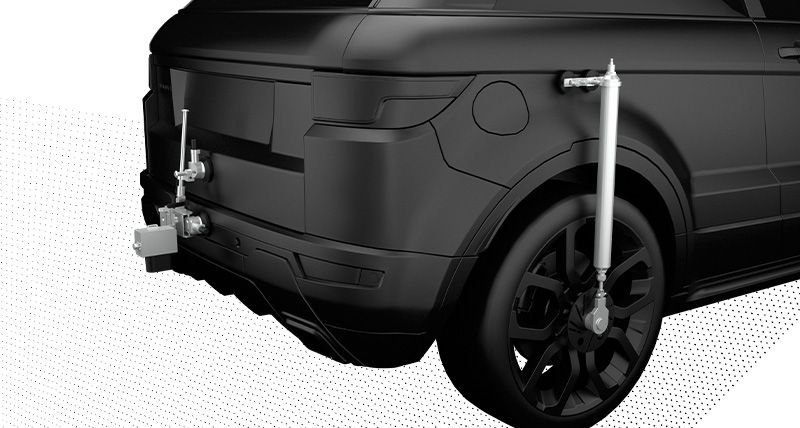

Achieve the highest accuracy level while respecting traffic safety regulations with the optical DMI. Installed on the back of the vehicle it accurately measures the travel distance in GNSS challenged conditions avoiding traditional slip error of wheel-based DMI.

Rail And Marine

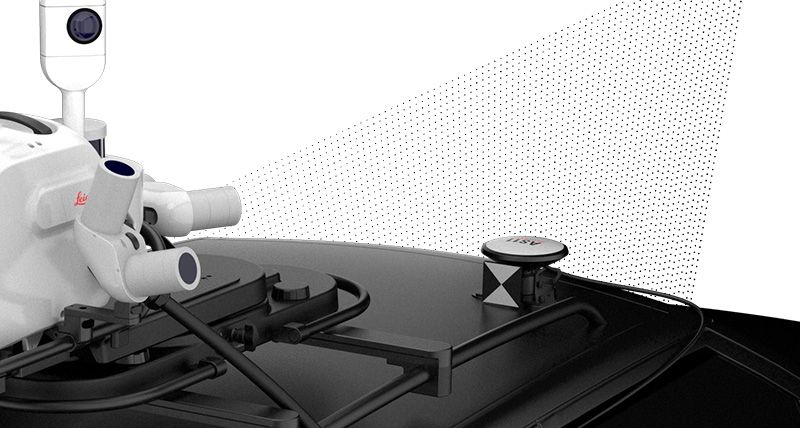

The second GNSS antenna makes initialization for rail and marine use simple as never before. With one click the antenna is referenced automatically.

Additional Features

• Immerse Antenna

  • Multi-constellation GNSS antenna with refined signal to noise ratio
  • Supports HxGN SmartNet and other NTRIP access points
• Hybrid Module

  • Provides data for SLAM computation
• DMI

  • Support for optical and mechanical DMI
  • Support for rail DMI
• Synch Port

  • Additional sensors synch port providing pulse per second, trigger, NMEA and power supply

Leica Pegasus FIELD

Doing It All. In All New Ways.

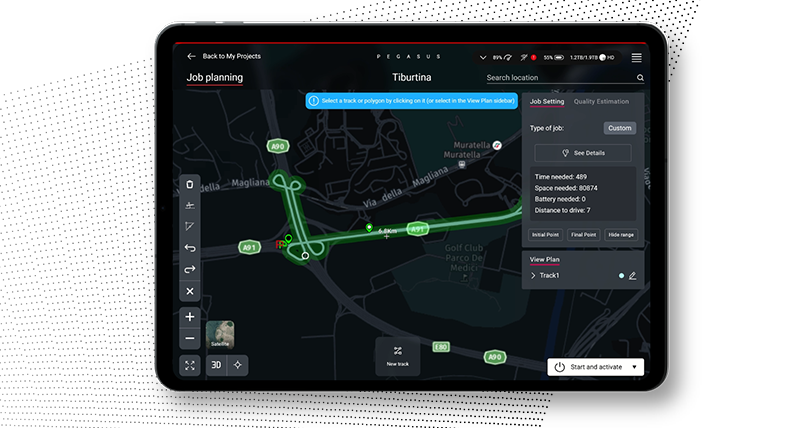

Plan in advance with pre-set features and profiles that simplify system initialisation to data delivery. Intelligent routing means you travel the most efficient data collection journey, with sensors that trigger autonomously, so no details are missed.

Confidence. From The First Click.

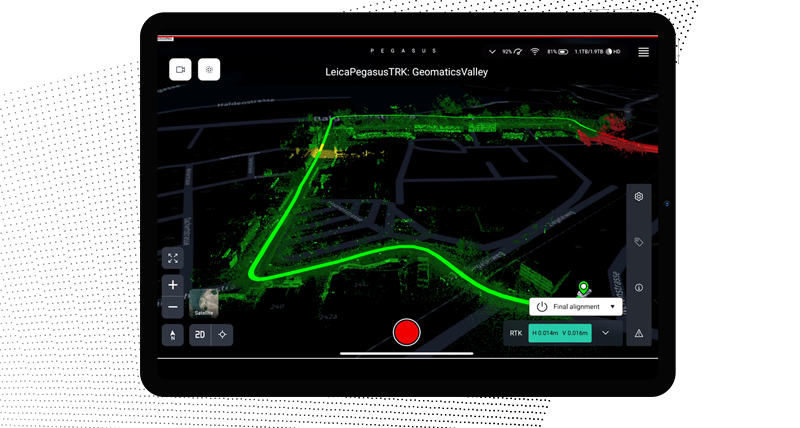

Surprises belong in the past. Pegasus FIELD predicts the time required for planned missions, and storage and battery capacity needed to perform the job. Real-time time notifications keep you up-to-date, with a live in-field view of data acquisition highlighted on the pre-downloaded base map.

Plan. Capture. Deliver.

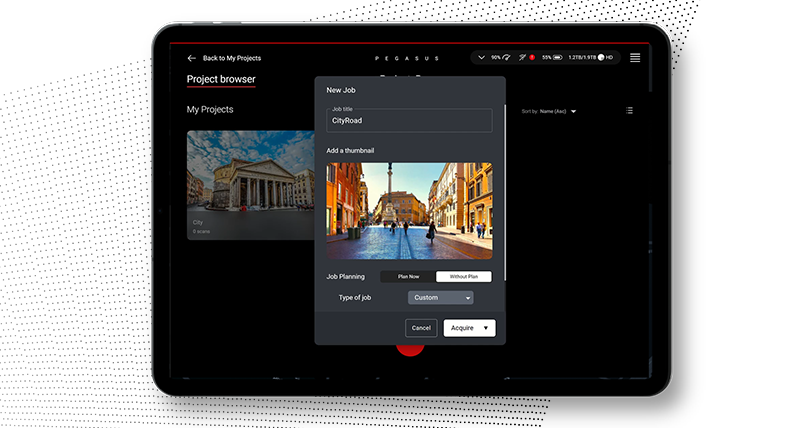

Guided project set-up automates the mission planning and data collection process, so you complete and deliver projects in less time, reducing project costs and increasing overall efficiency.

Additional Features

• Guidance

  • In-field mission navigation
  • Autonomous data collection
  • Complete mission assurance
• Intuitiveness

  • Step-by-step guided workflow
  • Real-time feedback
  • Simplified user interface
• Project Management

  • In-field mission and job planning
  • Predefined and customisable profiles
  • Mission prediction confirms resource requirements
• Device Independent

  • Supports LTE devices
  • Tablet and notebook friendly
  • Wired and wireless connectivity
